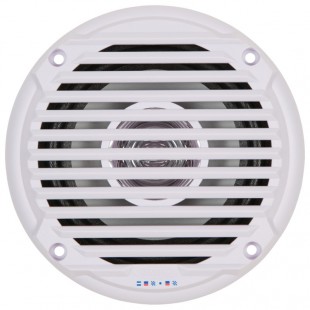

Features for the JENSEN 5.25" Dual Cone Waterproof Speaker
- 5.25" Dual Cone Waterproof Speaker- Max Power Handling: 30 Watts
- Waterproof
- ASTM B117 Salt Spray Exposure Standard Compliant:
- ASTM D4329 UV Exposure Standard Compliant:
- Speaker Color: White
- Sold Individually
Specifications for the JENSEN 5.25" Dual Cone Waterproof Speaker
| Weight (Lbs) |
1 |
|---|---|
| Speaker Color |
White |
| Sold as: |
Individual |
| Max Power Handling (Watts) |
30 |
| Magnet (oz.) |
2.9 |
| Sensitivity @ 1W/1 Meter (dB) |
86 |
| Frequency Response (Hz-kHz) |
79-20 |
| Nominal Impedance (Ohms) |
4 |
| Grille Diameter (Inches) |
5-15/16 |
| Mounting Hole Diameter (Inches) |
4-3/8 |
| Mounting Depth (Inches) |
1-1/2 |
| Watertight Standard Compliant |
Yes |
| Tweeter Type |
Whizzer |
| Tweeter Material |
Mylar |
| Polypropylene Woofer Cone |
Yes |
| ASTM B117 Salt Spray Exposure Standard Compliant |
Yes |
| ASTM D4329 UV Exposure Standard Compliant |
Yes |
Testing
Our hands on Engineering Research and Development team builds quality into our JENSEN Marine products from the beginning by expertly designing each product from the ground up and validating all designs through extensive testing that is primarily conducted in our own on-site test lab. Therefore, JENSEN Marine Audio & Video products offer MORE durability and performance than you would expect from standard electronics.

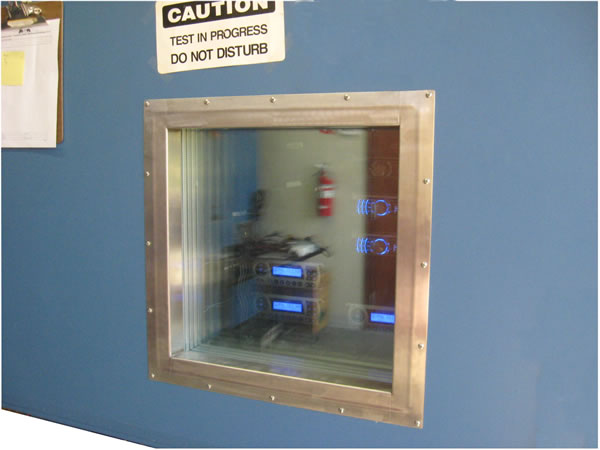

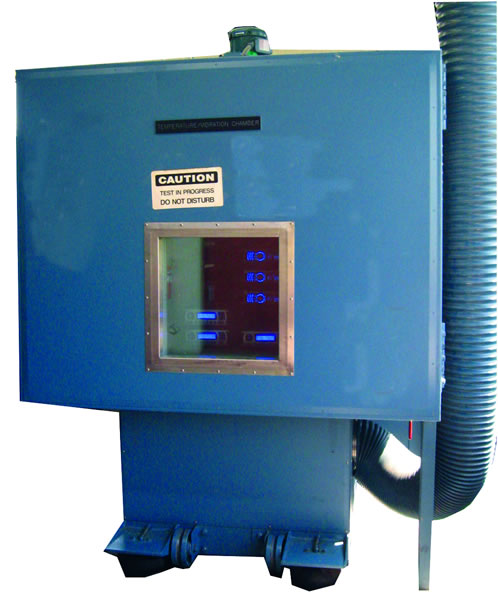

Temperature/Vibration Chamber
Long-Duration product exposure to constant random-frequency operational vibration and non-operational vibration to simulate rugged road conditions. Simultaneous temperature cycle and vibration exposure are also conducted for additional data that is relevant to detecting potential material/component weaknesses and calculating product life-expectancy.

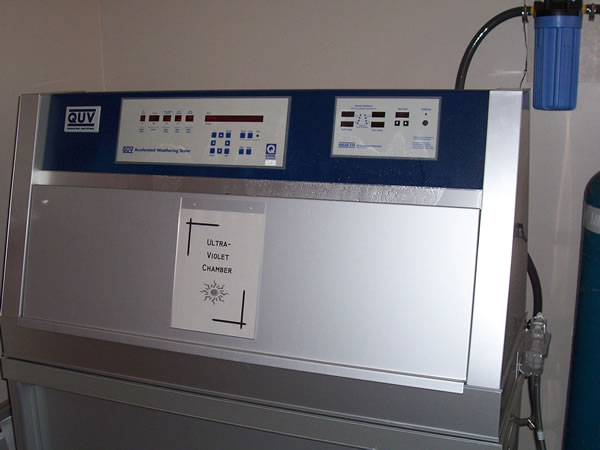

UV/Salt Fog Corrosive Exposure Chamber
Exterior components are subjected to accelerated UV exposure that equates to 5-7 years of actual outdoor exposure to assure you that your electronics will look great for many years. In addition, product and product components are subjected to dry/wet cycles of highly corrosive fog/mist to test for corrosion resistance and corrosion protection effectiveness.

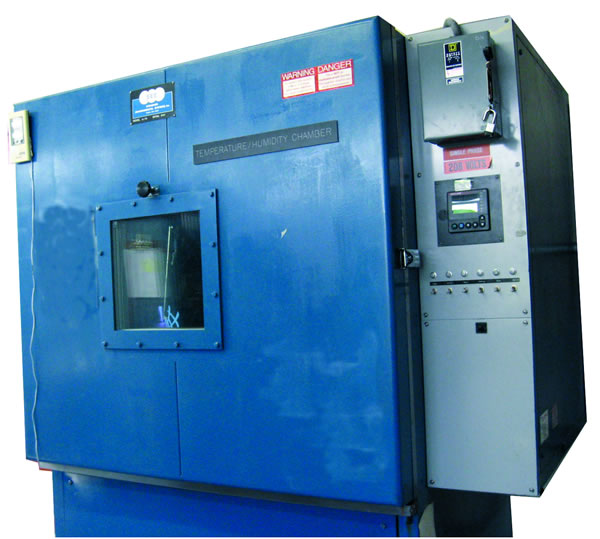

High/Low Operating Temperature
Long-Duration product exposure to operational temperature extremes and rapid temperature cycles that are experienced in outdoor mobile applications. In addition we test for High humidity introduced at high-temp to test effectiveness of circuit corrosion protection (conformal coating).

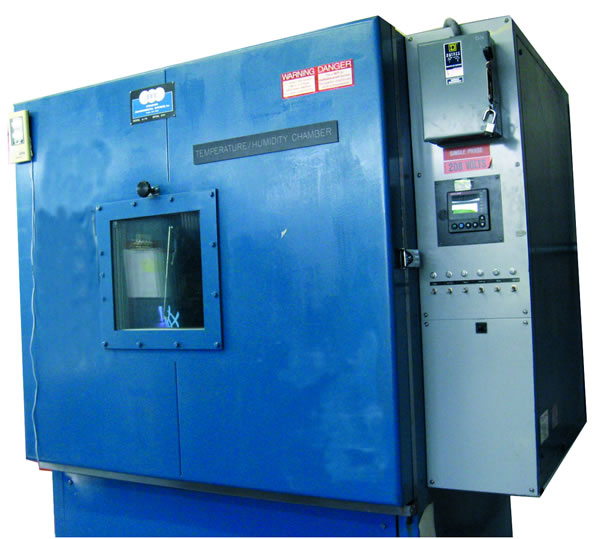

High/Low Storage Temperature
Ensures your JENSEN products will perform even after prolonged periods of storage with no power in extreme hot or cold temperatures.
Temperature Cycle
Used to ensure powered components withstand temperature fluctuations.
